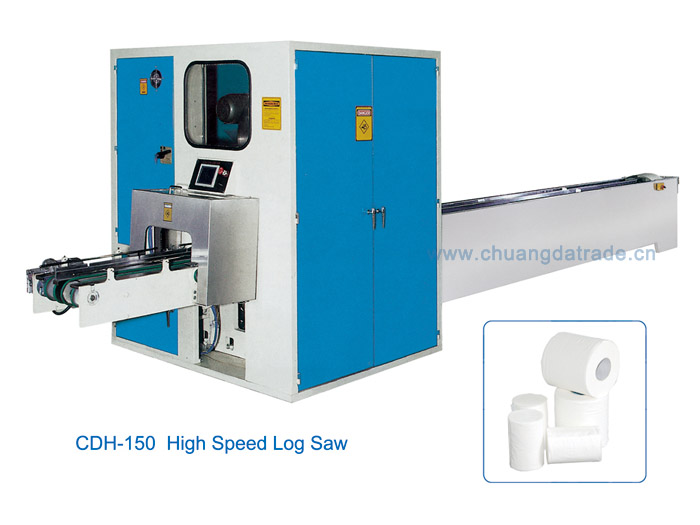

| CDH-150 High Speed Log Saw |
 |
CDH-150 High Speed Log Saw is one of the important equipment for the automatically continuous production line of toilet rolls and kitchen towels, greatly increasing the production automation and efficiency. The machine is characteristic of a strong, well built structure and perfect cutting action.
1.Function and feature
Automatic blade sharpening unit complete with lubrication system.
Log accompaniment system.
Automatic trim eliminating device.
Automatic approach of grinding wheels to cutting blade based on the blade wear.
Two clamping systems for toilet rolls and kitchen towels.
Short change over time.
2.Main Technical Parameter
Log length: 1500mm~2700mm
Log outside diameter: 90mm~150mm (standard size: 1105mm)
Cutting length: variable
Machine speed: 160 cuts/min, 2 rolls /cut
Operation speed: 150 cuts/min, 2 rolls /cut
Blade outside diameter: 610mm
Installed power: Alternating Current: 5 Horses per Machine
Frequency Conversion: 5 Horses per Machine
Alternating Current: 1/2 Horses per Machine, AC motor 5 Horses |
|
|
|
|
